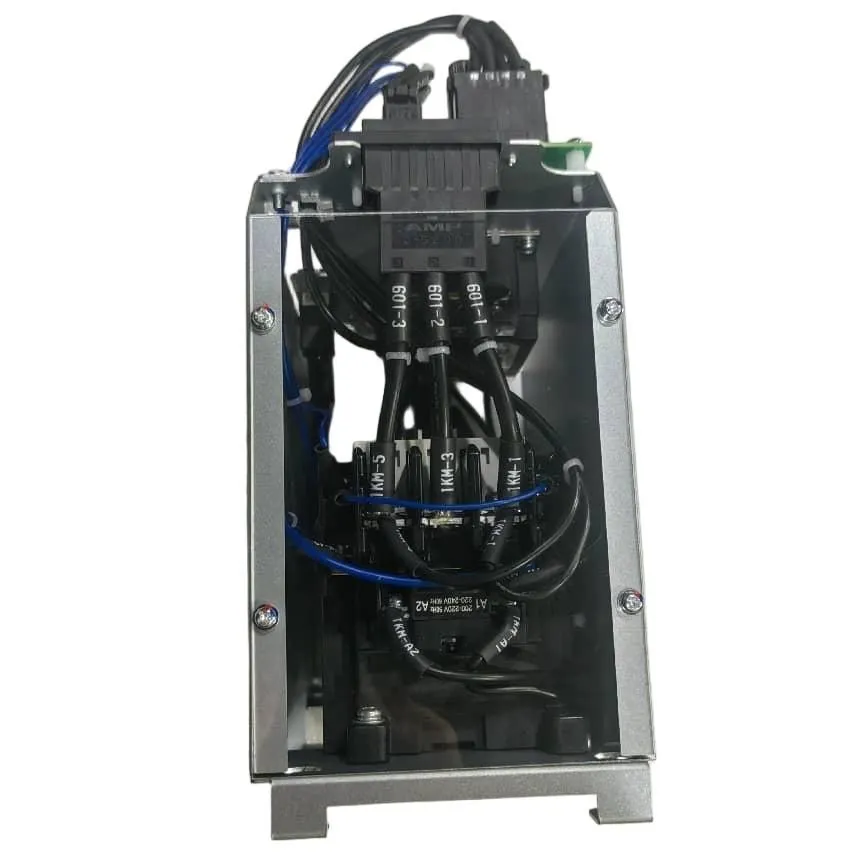

Yaskawa JZRCR-YPU01C-2

The Yaswaka JZRCR-YPU01C-2 is a robust power supply module designed by YASKAWA for use in robotic control systems. Engineered for reliability and high performance, this power supply is a critical component in ensuring the efficient operation of industrial robots and automation equipment.
MOQ:1

Send Inquiry

Products Description

The Yaskawa JZRCR-YPU01C-2 is a robust power supply module designed by YASKAWA for use in robotic control systems. Engineered for reliability and high performance, this power supply is a critical component in ensuring the efficient operation of industrial robots and automation equipment.

This dedicated component is designed specifically for robotic applications, providing consistent and stable power that is crucial for the seamless operation of robotic machinery.

JZRCR-YPU01C-25 JZRCR-YPU01C-27

Products Parameter

Input Voltage Range	200-240V AC (3-phase) / 380-480V AC (3-phase)
Input Frequency	50/60 Hz
Output Voltage	24V DC (Control Power) / 200V DC (Servo Power)
Output Current	Rated for robot controller requirements
Efficiency	>90%
Power Factor	>0.95

Environmental Specifications

Operating Temperature	0°C to +55°C
Storage Temperature	-20°C to +70°C
Relative Humidity	20% to 90% (non-condensing)
Altitude	Up to 2000m without derating
Vibration Resistance	10-55Hz, 0.5G
Shock Resistance	20G, 11ms

Products installation data

Dimensions	Approx. 250mm x 150mm x 100mm (W x H x D)
Weight	Approx. 1.5 kg (3.3 lbs)
Mounting	DIN rail or panel mount
Cooling	Forced air cooling (internal fan)
IP Rating	IP20 (indoor use)

Interface And connection

Input Connection	Terminal block (screw type)
Output Connection	Terminal block (screw type)
Signal Interface	Status signals (ready, fault, alarm)
Communication	Optional RS-485 for monitoring

Key Features

Robust Industrial Design - Heavy-duty construction, 24/7 operation, vibration resistant

Advanced Power Regulation - Wide input voltage range, stable output, low noise

Comprehensive Protection - Over-voltage, over-current, short-circuit, thermal protection

High Efficiency - >90% efficiency, reduced energy waste

YASKAWA Quality - ISO 9001 certified, long-term reliability

fAQ

Q1: What is the difference between JZRCR-YPU01C-1 and JZRCR-YPU01C-2?

A: The JZRCR-YPU01C-2 is an updated version with improved efficiency and enhanced protection features. Both are functionally compatible and can be used as replacements for each other.

Q2: Is this product still in production?

A: No, this model has been discontinued by YASKAWA. However, it is available as a legacy/replacement part from authorized distributors and surplus suppliers.
