Specification

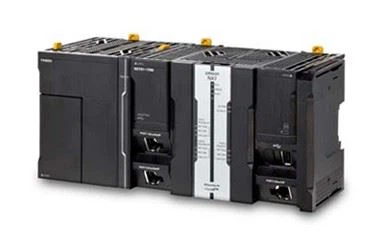

Omron NX102-1020 NX-series NX102 CPU Unit Hardware User's Manual

Communication ports	EtherCAT and 2x EtherNet/IP built in
Flash memory port	SD
I/O capacity	1024 Points local (8960 with NX Coupler)
Maximum number of units	32 NX units Local (400 with NX Coupler)
Min Cycle Time	1 ms
Motion Control Network	EtherCAT
Mounting	DIN Rail
Program capacity	5 MB Program, 32 MB Non-Retained
Programming Connection	Ethernet
Programming language	Ladder / Structured Text / Function Block

Integration And functionality

Transistor Output Unit (M3 Screw Terminal Block, 30 mm Width)	16 points	NPN	0.5 A/point, 5 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free- Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD5121-1
	16 points	PNP	0.5 A/point, 5 A/Unit	24 VDC		0.5 ms max./ 1.0 ms max.	NX-OD5256-1
Transistor Output Unit (MIL Connector, 30 mm Width)	16 points	NPN	0.5 A/point, 2 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free- Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD5121-5
	16 points	PNP	0.5 A/point, 2 A/Unit	24 VDC		0.5 ms max./ 1.0 ms max.	NX-OD5256-5
	32 points	NPN	0.5 A/point, 2 A/ common, 4 A/Unit	12 to 24 VDC		0.1 ms max./ 0.8 ms max.	NX-OD6121-5
	32 points	PNP	0.5 A/point, 2 A/ common, 4 A/Unit	24 VDC		0.5 ms max./ 1.0 ms max.	NX-OD6256-5
Transistor Output Unit (Fujitsu/OTAX Connector, 30 mm Width)	32 points	NPN	0.5 A/point, 2 A/ common, 4 A/Unit	12 to 24 VDC	Switching Synchronous I/O refreshing and Free- Run refreshing	0.1 ms max./ 0.8 ms max.	NX-OD6121-6
Relay Output Unit (Screwless Clamping Terminal Block, 12 mm Width/24 mm Width)	2 points	Relay type: N.O.	250 VAC/2 A (cos =1), 250 VAC/2 A (cosφ=0.4), 24 VDC/ 2 A, 4 A/Unit		Free-Run refreshing	15 ms max./ 15 ms max.	NX-OC2633
	2 points	Relay type: N.O.+N.C.			Free-Run refreshing	15 ms max./ 15 ms max.	NX-OC2733
	8 points	Relay type: N.O.	250 VAC/2 A (cos =1), 250 VAC/2 A (cosφ=0.4), 24 VDC/ 2 A, 8 A/Unit		Free-Run refreshing	15 ms max./ 15 ms max.	NX-O
