SIEMENS 6AV2124-0QC02-0AX2
MOQ:1 set
Stock:Available
Send Inquiry
Product Details of SIEMENS 6AV2124-0QC02-0AX2
Product Introduction

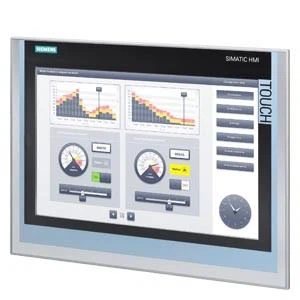

The SIEMENS 6AV2124-0QC02-0AX2 is a high-performance HMI combining rugged design, multi-touch interactivity, and seamless integration with Siemens PLCs (e.g., S7-1200/1500). Its global certifications and scalability make it ideal for Industry 4.0 applications, from discrete manufacturing to process industries.
Core Specifications
| Category | Specification |
|---|---|
| Model | 6AV2124-0QC02-0AX2 |
| Series | SIMATIC HMI Comfort Panels (TP1500 Series) |
| Brand | Siemens |
| MOQ | 1 set |
| Display | |
| • Size | 15.4-inch widescreen TFT LCD |
| • Resolution | 1280 × 720 pixels (WXGA) |
| • Colors | 16 million (16M) |
| • Brightness | 500 cd/m² (adjustable) |
| • Backlight | LED (long lifespan, energy-efficient) |
| Touchscreen | |
| • Type | Projected capacitive touch (PCT) |
| • Multi-touch | Supports gestures (zoom, swipe) |
| • Durability | Scratch-resistant glass, IP65 front (dust/water-resistant) |
| Processor & Memory | |
| • CPU | ARM Cortex-A9 (1 GHz) |
| • RAM | 256 MB |
| • Storage | 24 MB internal (expandable via MMC/SD card slot) |
| Interfaces | |
| • Ethernet | 1 × PROFINET/Industrial Ethernet (RJ45) |
| • Serial | 1 × MPI/PROFIBUS-DP (optional via adapter) |
| • USB | 2 × USB 2.0 (host/device) |
| • Other | Optional fiber-optic ports (for redundant networks) |
| Power Supply | |
| • Voltage | 24 V DC (±20%) |
| • Power Consumption | ≤35 W (typical) |
| Operating Environment | |
| • Temperature | 0°C to 45°C (storage: -20°C to 70°C) |
| • Humidity | 5% to 95% non-condensing |
| • Altitude | Up to 3,000 meters |
| Mounting | |
| • Orientation | Horizontal or vertical installation |
| • Protection | IP65 front panel (NEMA 4/4X equivalent) |
| Software | |
| • Engineering | TIA Portal (STEP 7/WinCC Comfort) |
| • Runtime | SIMATIC WinCC Comfort (V14 SP1 or higher) |
| • Protocols | OPC UA, PROFINET, PROFIBUS, MPI, Modbus TCP |
Application Scenarios
The Siemens 6AV2124-0QC02-0AX2 is designed for industrial automation and smart manufacturing, offering versatility across sectors:
1. Manufacturing & Production Lines
Use Case: Real-time monitoring of assembly lines (e.g., automotive, electronics).
Function: Displays process data (e.g., torque, pressure, temperature) via dynamic process flow diagrams.
Benefit: Reduces downtime by enabling operators to identify bottlenecks quickly.
2. Energy & Utilities
Use Case: Solar/wind farm monitoring or substation control.
Function: Collects data from inverters, sensors, and weather stations.
Benefit: Supports predictive maintenance with trend analysis and alarm thresholds.
3. Oil & Gas/Chemical Industry
Use Case: Explosion-proof environments (e.g., offshore platforms, refineries).
Function: ATEX-certified design for safe operation in hazardous zones (Ex d IIC T6).
Benefit: Integrates with safety instrumented systems (SIS) for emergency shutdowns.
4. Water Treatment & Infrastructure
Use Case: Pump station control or wastewater treatment plants.
Function: Manages motor drives, valves, and flow meters via PROFINET IO.
Benefit: Reduces response time for alarms (e.g., leaks, overflows).
5. Automotive & Heavy Machinery
Use Case: Robotic welding or CNC machining centers.
Function: Multi-language support for global deployment without retraining.
Benefit: A German automaker reduced line changeover time from 4 hours to 30 minutes using TP1500.
6. Building Automation
Use Case: HVAC or lighting control in smart buildings.
Function: Centralized monitoring via OPC UA integration with BMS/ERP systems.
Benefit: Energy savings through dynamic scheduling and load shedding.
7. Pharmaceuticals & Food Processing
Use Case: Cleanroom environments requiring hygienic design.
Function: IP65-rated front panel for easy cleaning (resistant to chemicals).
Benefit: Compliance with FDA/GMP regulations for traceability and audit trails.
