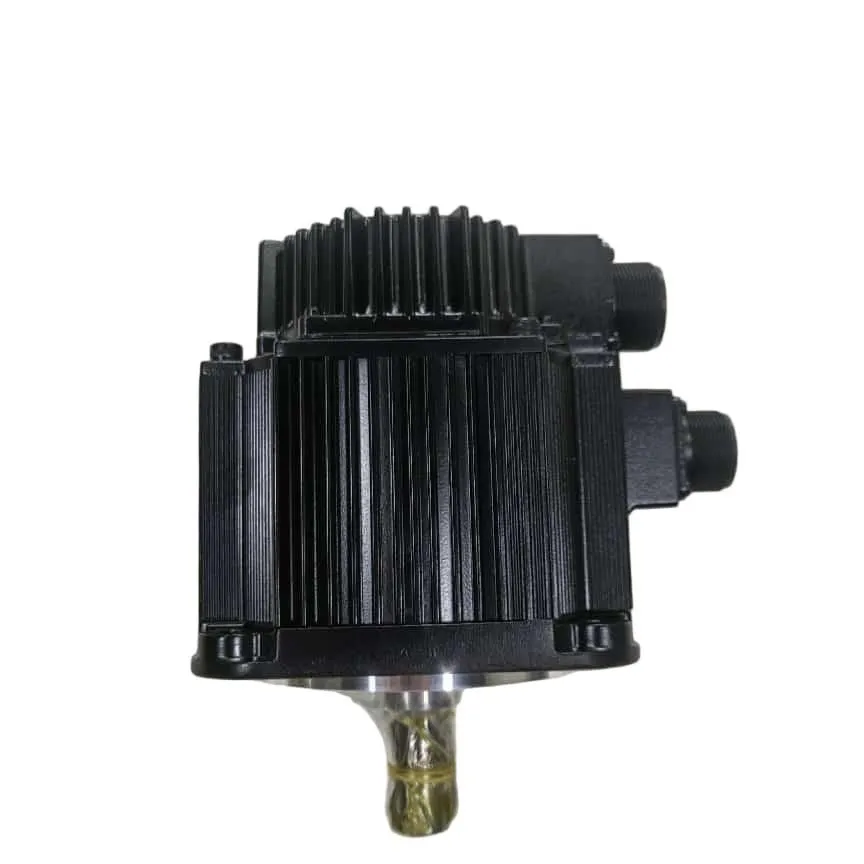

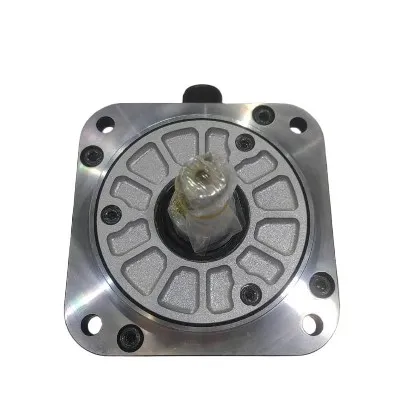

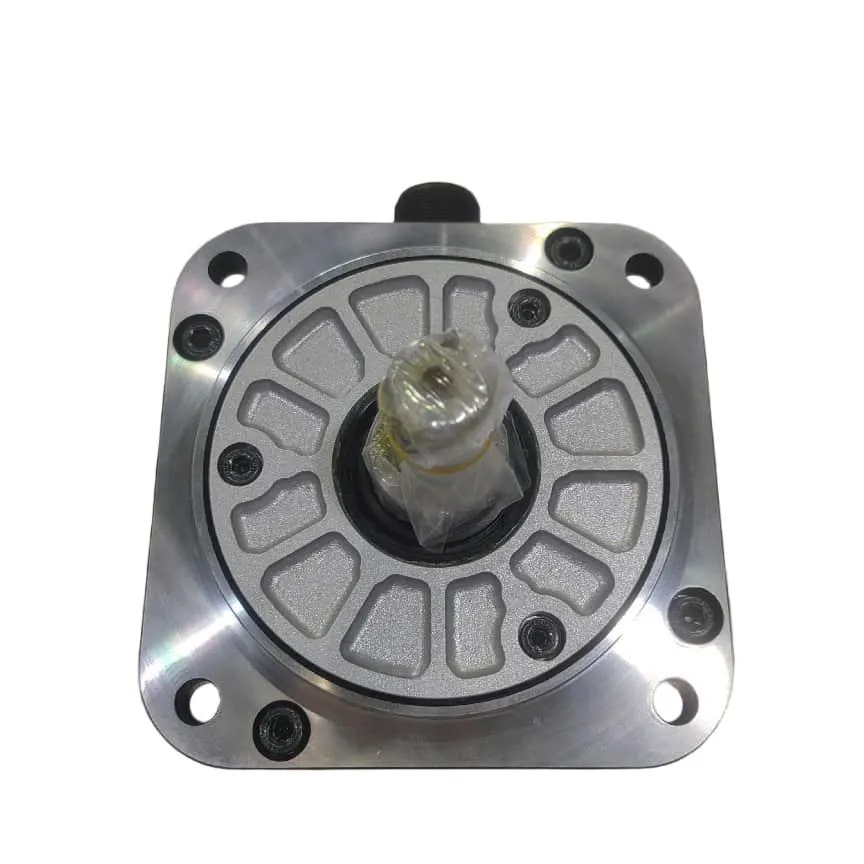

SGMGH-05DCA6F-OY

The SGMGH-05DCA6F-OY is a Sigma II series AC servo motor manufactured by Yaskawa Electric Corporation, one of the world's leading manufacturers of motion control products. This motor belongs to the high-speed feed type category, designed for applications requiring rapid and precise positioning.
MOQ:1

Send Inquiry

Products Description

The Yaskawa SGMGH-05DCA6F-OY is a Sigma II series AC servo motor manufactured by Yaskawa Electric Corporation, one of the world's leading manufacturers of motion control products. This motor belongs to the high-speed feed type category, designed for applications requiring rapid and precise positioning.

Products Description

Feature	Description
Compact Design	Segmented stator design dramatically reduces overall motor size
Medium Inertia Rotor	Optimized balance between response speed and stability
High-Resolution Encoder	17-bit incremental encoder provides precise position feedback
Reliable Performance	Proven Sigma II technology with excellent reliability
Wide Application Range	Suitable for various industrial automation applications

Electrical Parameters

Parameter	Value
Rated Power	450 W (0.45 kW)
Rated Voltage	400 VAC
Rated Current	1.9 A
Rated Speed	1,500 r/min
Maximum Speed	3,000 r/min
Rated Torque	5.39 Nm (200% overload)
Torque Constant	1.5 Nm/A (typical)
Rotor Inertia	7.8 × 10⁻⁴ kg·m²
Power Supply	3-phase AC 400V

Mechanical Parameters

Parameter	Value
Shaft Diameter	20 mm
Shaft Type	Straight shaft (no keyway)
Brake Option	Without brake (F model)
Mounting	Flange mounting
Protection Rating	IP65 (dust-proof and water-jet resistant)
Insulation Class	IP65 (dust-proof and water-jet resistant)
Cooling Method	Class F (155°C)
Vibration Resistance	Natural cooling (self-cooled)
Ambient Temperature	0 to +40°C (operating)
Storage Temperature	-20 to +85°C

Encoder Specifications

Parameter	Value
Encoder Type	Incremental encoder
Resolution	17-bit (131,072 pulses/revolution)
Encoder Model	UTSIH-B17CK-E
Communication	Serial communication
Accuracy	±0.03° (typical)
